The Foil Drive that invented and introduced the world to the concept of retro-fit electric foil assist. The original kit with everything you need for hybrid foiling, mounted to the top side of your board. This is a great kit to enter the world of hybrid Foildriving.
From the Beginning...
The initial design of the Assist PLUS was for larger, SUP style boards.
Not far down the track, riders we're pushing the limits and more and
more people began riding lower volume, prone style boards.

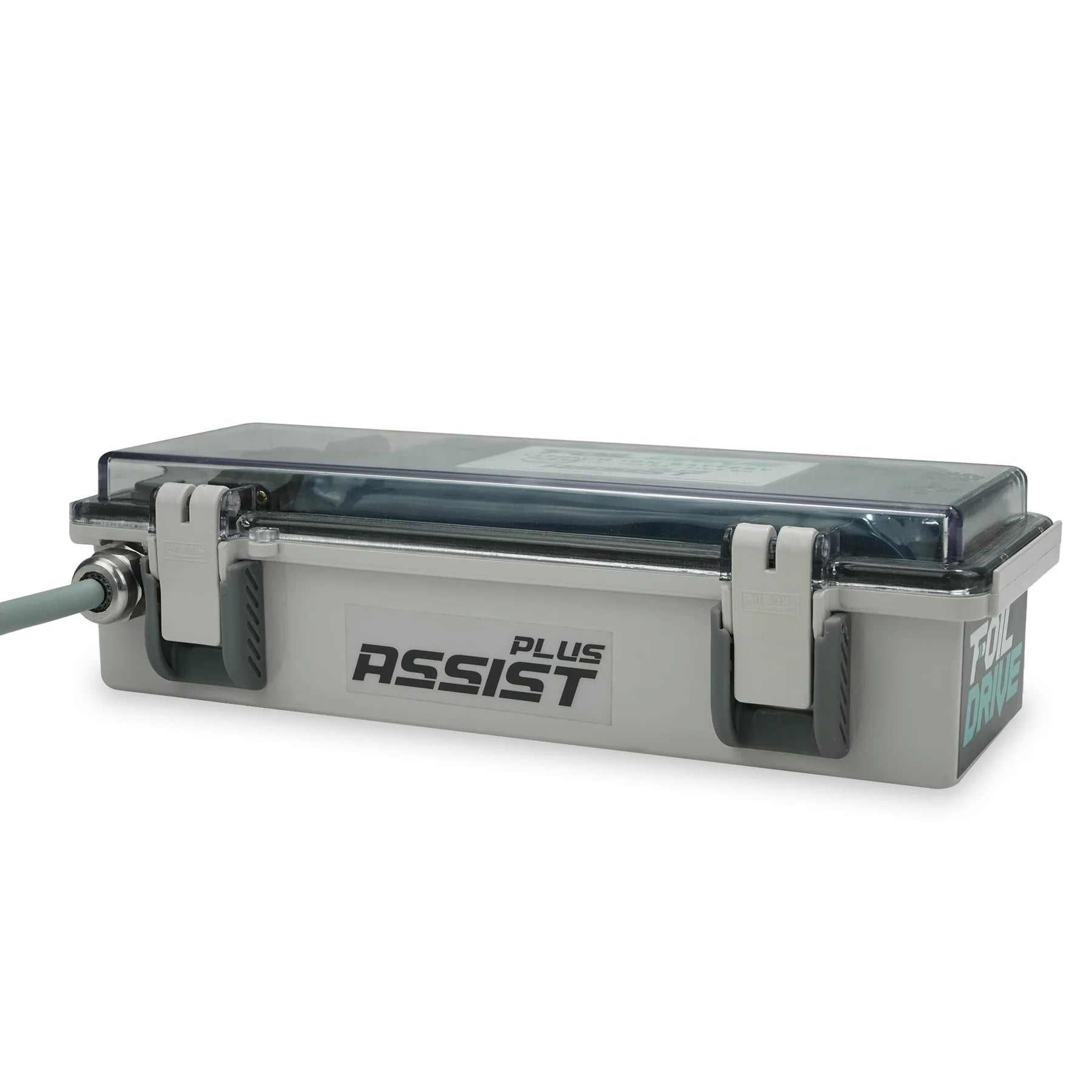

The main limitation of the Assist PLUS is the wireless connection between
the electronics box, on the top of your board, and your hand controller.
When riding a smaller board, the box must be mounted towards the front
to limit the amount of water that passes over it.
Water is an
incredibly difficult substance to transmit a wireless connection
through. The connectivity of your Gen1 Foil Drive will improve the more
the electronics box is out of the water.
Smaller boards also require more power, and chew through your battery much faster.

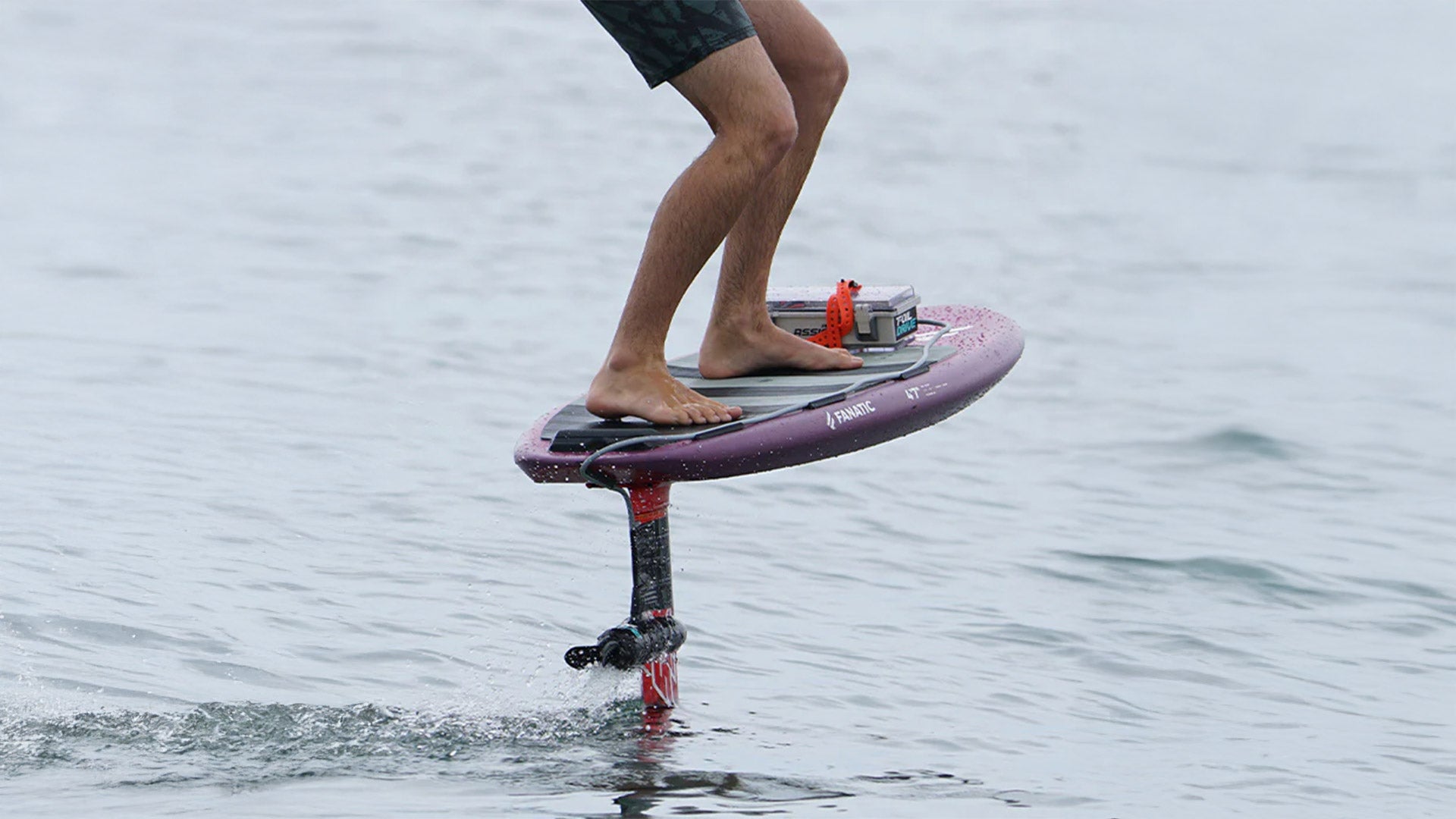

Installation
Gen1 Foil Drive Systems and Motor Cable Length

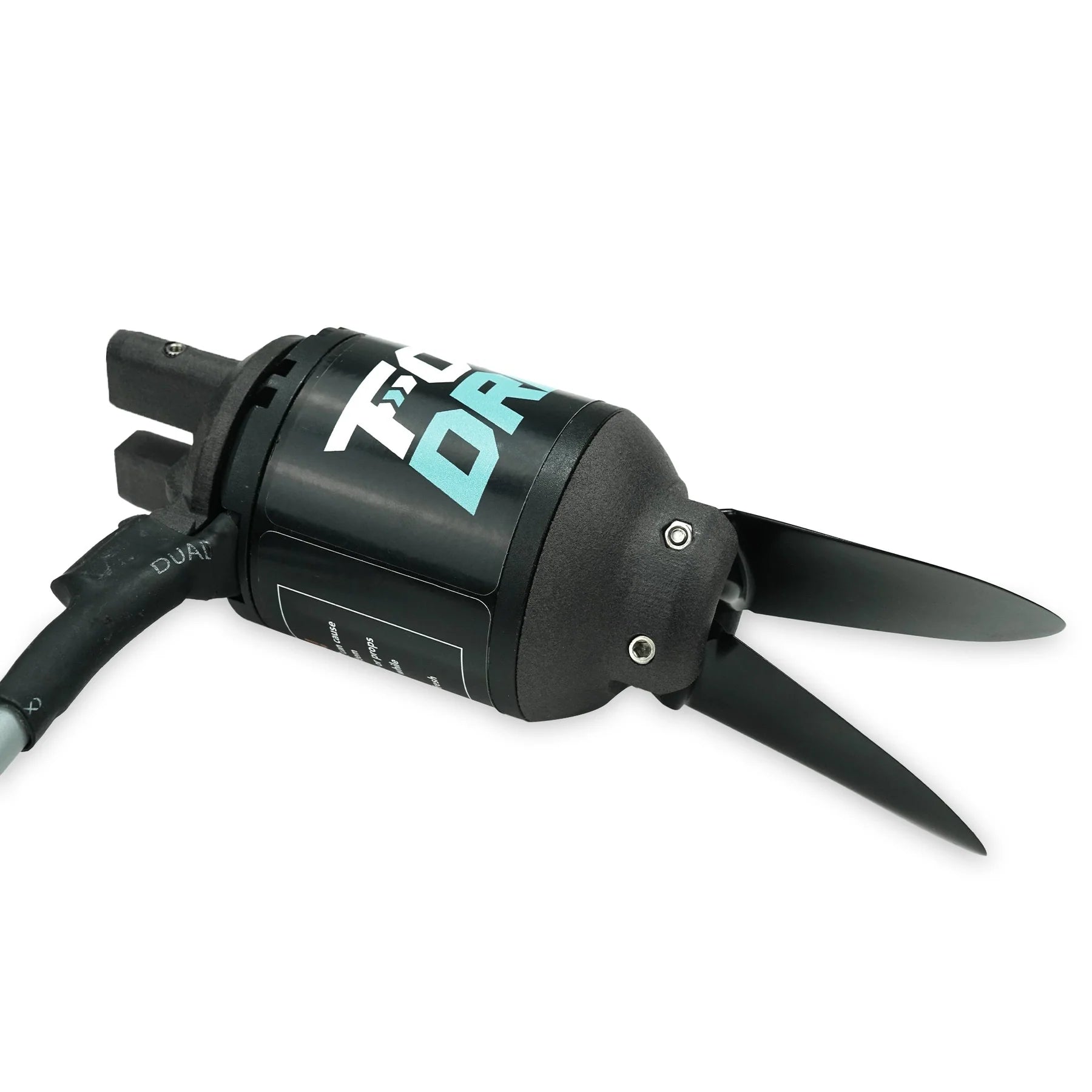

Gen1 Foil Drive systems feature an inbuilt, fixed motor with 200cm of cable length. This gives ample length to run the motor at any height on the mast with versatile box mounting options. Excess cable can be coiled up and tied off when not in use. Assist PLUS systems come with an inbuild cable that cannot be altered or changed and are fixed. If you chose to run an Integrated Mast, your Assist PLUS will become part of the mast setup.
How is it Mounted to the board?

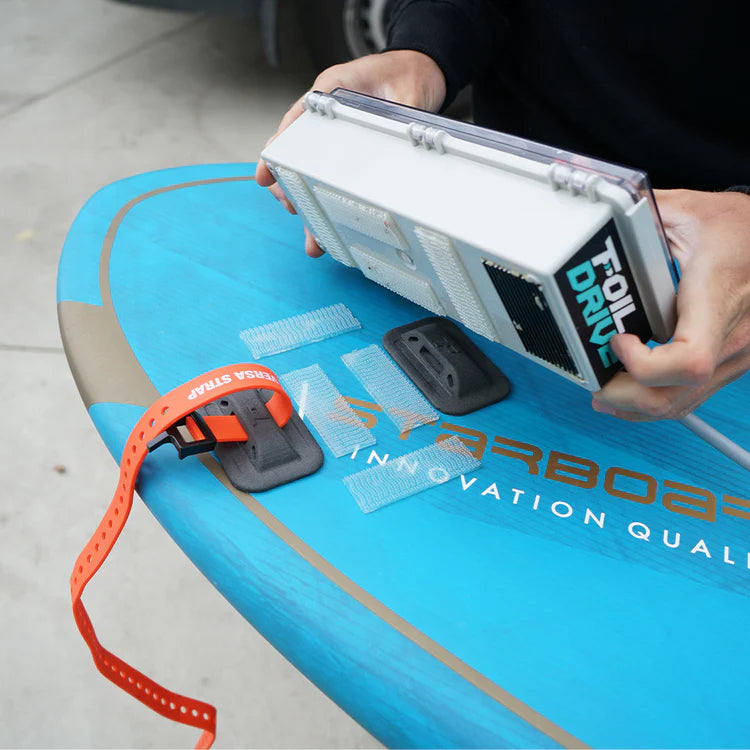

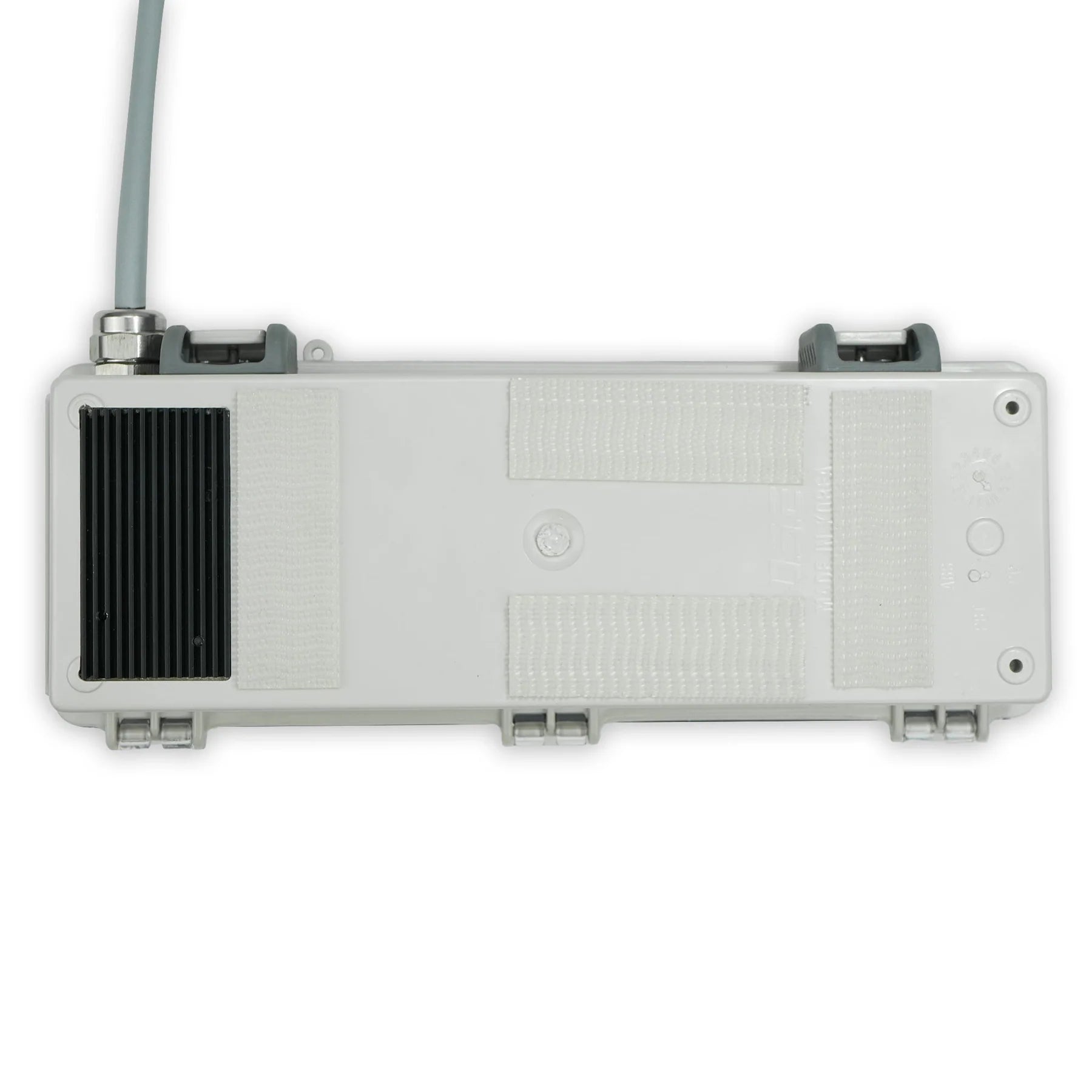

Gen1 Foil Drive Systems mount to the top side of your board using a removable, adhesive backed, 3M Dual Lock. We have a range of accessories like the Mounting Base Plate that can be used with foot strap holes as an alternate mounting method.
Tech Specs
Maximum Thrust: 25kg (55.1lbs) with Three Blade Alloy Props
Weight Range: 2.6 - 3.7kg (5.7-8.1lbs) depending on battery
Dimensions: L270 x W115 x H70mm
Operating Voltage: 28V
Runtime (Generalised): 30min-3hrs depending on use case, battery and other variables.
Recharge time: Appx. 2hrs (Standard Battery)
FOIL DRIVE ASSIST PLUS
Foil Drive Assist PLUS is the entry level Foil Drive unit for everyone. The Assist PLUS allows riders the creativity to fit an electric paddle assistance system to their existing gear any way they like. It's lightweight design perfect for foil surfing, downwind, wing foil, learning and flatwater Foil Driving meaning you can focus on flight and improve your foiling in no time.

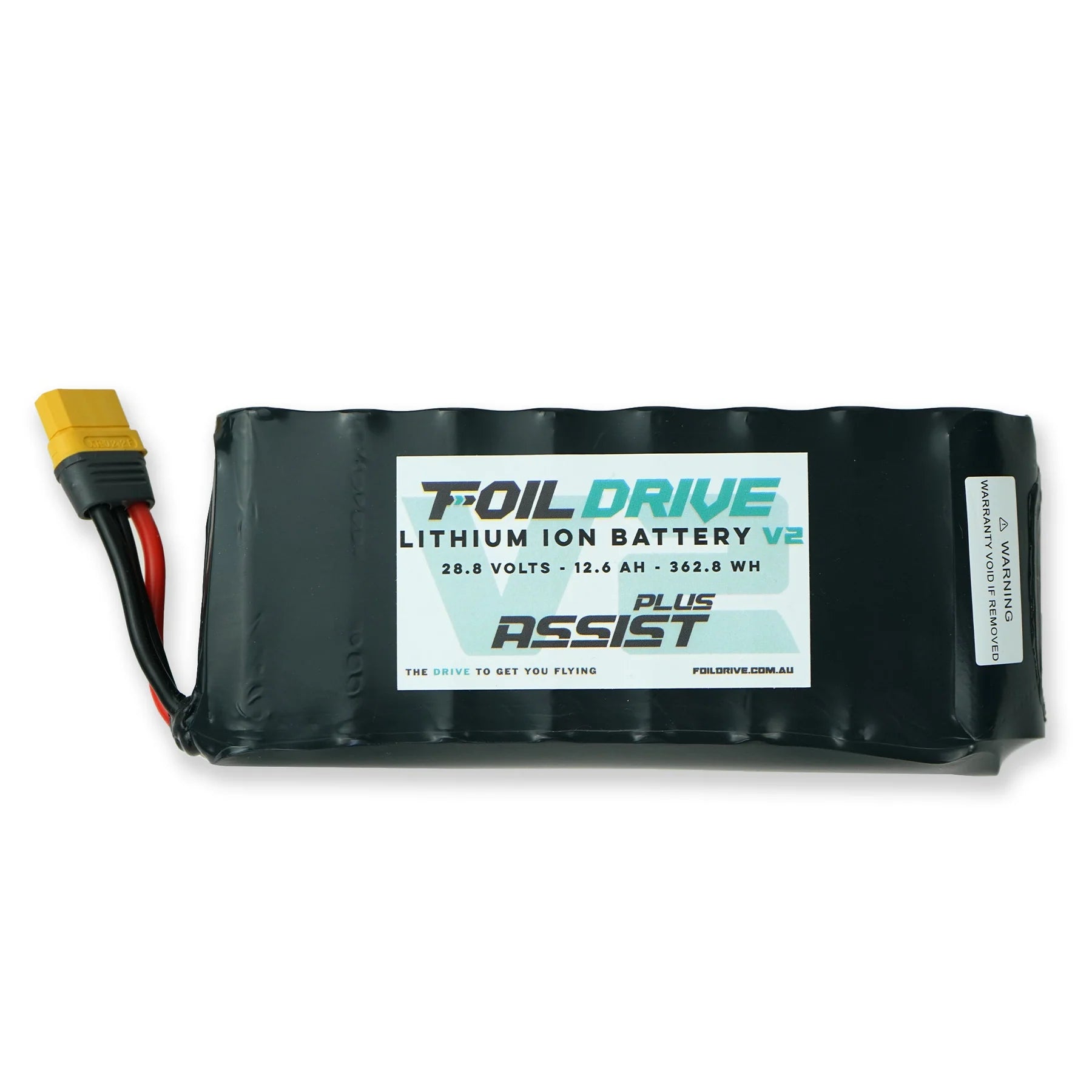

Simply choose your desired PLUS Battery
All Assist PLUS kits now come with the maximum 200cm / 78'' cable length as standard as well as Universal Mast Adaptor.
Optionen auswählen

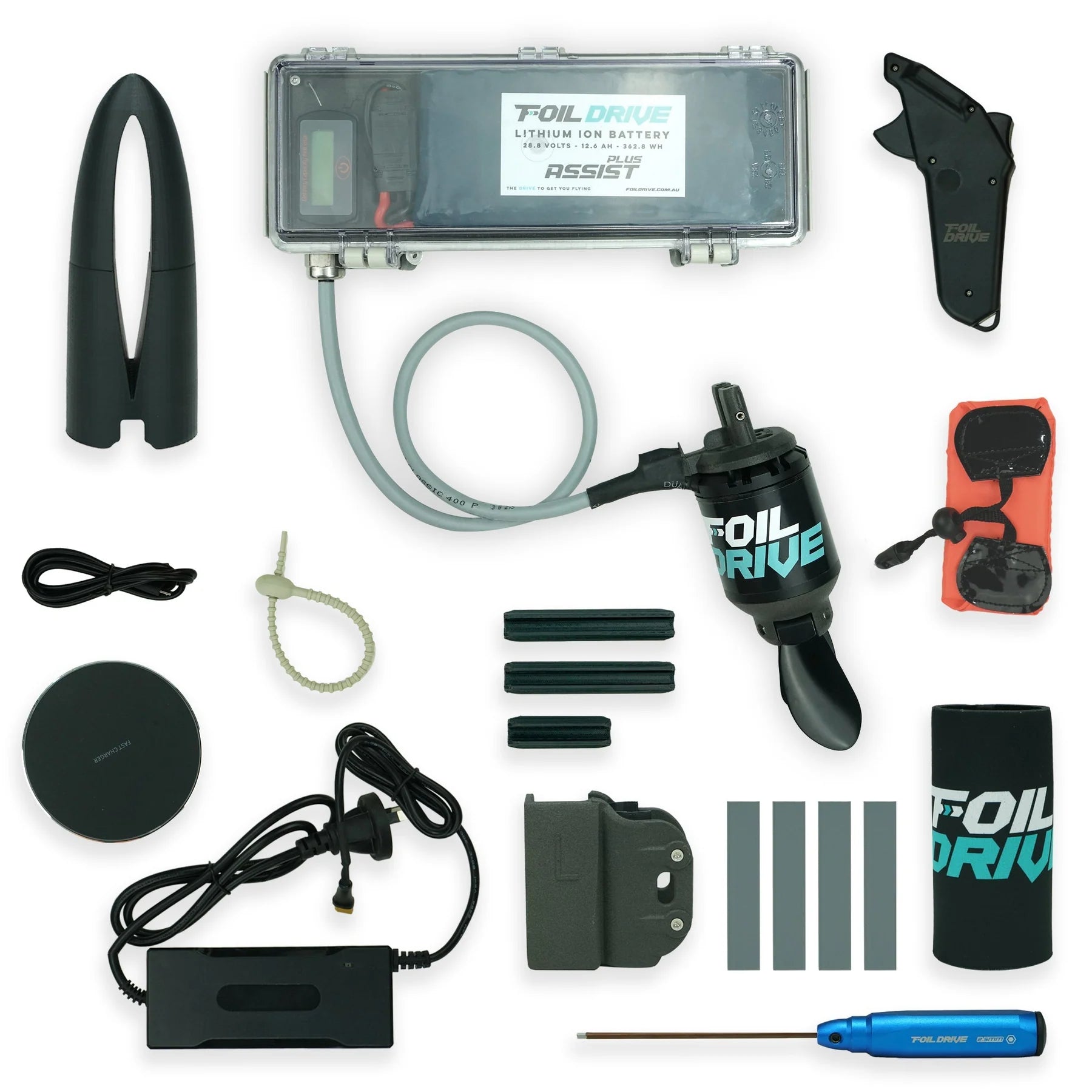

Foil Drive Assist PLUS
Your choice of battery
Aluminium Folding Propellers
Universal Mast Adapter
Wireless Throttle Controller
Paddle Mount
V2 Universal Mounting Pod
3M Dual Lock (preinstalled) for mounting
3x Board Cable Guides (1x Short, 2x Long)
2x Rubber Mast Cable Guides
1x 2.5mm M3 Hex Driver
Wrist Leash
1x Lipo Safe Bag
Stubby Cooler for motor protection
Lithium Battery Charger (AUS or US Plug (To Specify)
Wireless Charger for Controller
1x Re-Usable Silicone Tie
For flatwater foiling, additional Mast Cable Guides are required.
Assist PLUS
PLUS Standard Battery
PLUS Small Battery
PLUS Airline Travel Bundle
Install weight: 3.7kg
Operating Voltage: 28-32v
Max Thrust: 24.5kg (Aluminium Propellers)
Runtime (Generalised): 30min-3hrs depending on use case, battery and
other variables.Recharge time: Appx. 2hrs (Standard Battery)
Install time: 10mins
