The Assist Slim is smaller and lighter with a shorter run time, designed for performance foiling. It offers enough power for assisted foiling, while remaining super compact!
The kit includes everything you need
The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine:

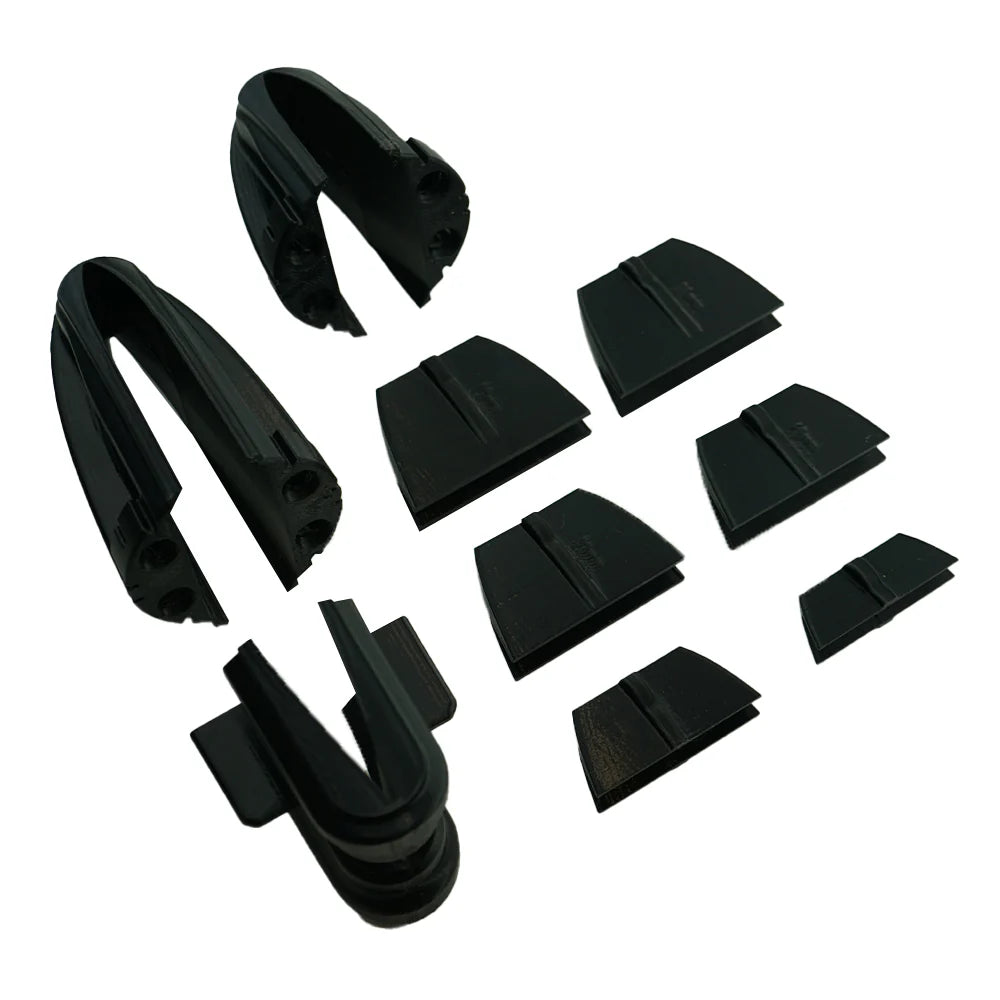

- Universal Mast Adaptor that suits 99% of foil masts available
- v2 Motor with 20cm cable length as standard. Cable lengths are easily interchangeable for ultimate customisation with the new Removable V2 Motor Cable
- Bluetooth Connectivity to the Foil Drive Mobile App
Simply choose your desired battery size between the
- Slim Performance Battery (now comes with 2x batteries for the same price!)
- Slim Endurance Battery (Requires at 28v charger additional purchase!)
- Slim Travel Battery
The Foil Drive Assist Slim is perfectly suited to those just looking for an extra boost to get on foil or to ride smaller boards and foils. The Assist Slim is not suitable for prolongated periods of motor assisted riding, it simply provides the boost to get up on foil and ride more. Advanced Surf and Downwind riders will love the low profile and weight but will need to be very disciplined on the throttle usage. Wing foilers simple do not need the run time usually and will also appreciate the low profile and weight.
Who Rides The Slim?
At just 35mm thin, the Foil Drive
Assist Slim is specifically engineered for performance-oriented riders
looking for assisted power only. Whether you’re carving sharp turns on a
prone board, tackling downwind missions in challenging conditions,
optimizing smaller gear for wing foiling, or extending your pump foil
sessions, the Assist Slim delivers exceptional performance.
While
it features a reduced battery capacity that results in shorter runtimes,
the Assist Slim still packs a powerful punch for assisted popups. With
its low weight strategically positioned under your board, you'll hardly
notice it’s mounted - once you’re up on foil, it feels like pure
freedom!
Note: The Assist Slim is designed for assisted foiling only and is intended for use to "pop up" on foil then ride unpowered.
Install on any Foil Board & Mast
Gen2 Foil Drive Systems mount between your mast plate and the board. As
foil mast tracks are universal, this means it fit's any board! Simply
use the provided locking T nuts and longer mast bolts. Sandwich your
Gen2 Foil Drive between your gear for optimal weight distribution and a
clean top board surface.
Note: Boards with Carbon Tracks may require an additional External Antenna
Tech Specs
Maximum Thrust: 25.5kg (56.2lbs)
Total Install Weight : 4.2-3.75 kg (9.2-8.2lbs) depending on battery
Max. Dimensions: L510 x W125 x H35mm
Min. Dimensions: L415 x W125 x H35mm
Operating Voltage: 40V
Runtime (Generalised): 20min-2hrs depending on use case, battery and other variables.
Recharge Time: Appx. 1hr (Performance Battery)
Batteries: IP68 rated dust and water resistant.

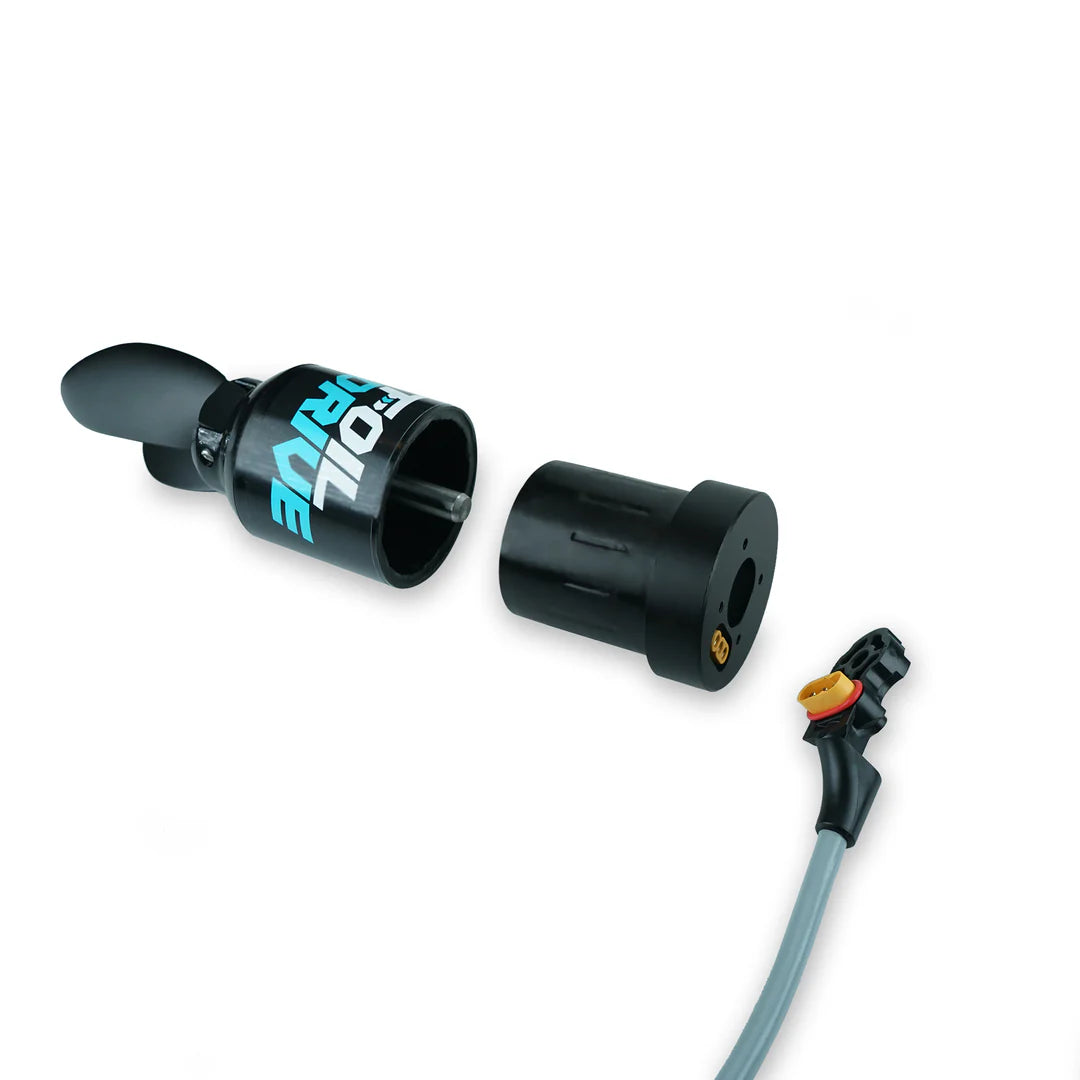

Removable Motors
With three simple
screws, the motor plug can be removed, allowing the rider to change
their motor height through swapping between different cable lengths.
With options to use your own foil mast or a fully integrated option, there are more ways to tune your setup than ever!
FOIL DRIVE ASSIST SLIM
(The Foil Drive Assist Slim is the smaller, lighter, performance orientated model, for the ultimate in performance hybrid electric assist foiling. Despite its small size, it offers the plenty of thrust to get you of foil easier and sooner however the smaller batteries do reduce the run time. The Assist Slim is perfect for advanced, high performance riders or wingers/downwinders that do not require lots of battery capacity.
The kit includes everything you need to turn your existing foil and board into an electric assisted foiling machine:
- Universal Mast Adaptor that suits 99% of foil masts available
- v2 Motor with 20cm cable length as standard. Cable lengths are easily interchangeable for ultimate customisation with the new Removable V2 Motor Cable
- Bluetooth Connectivity to the Foil Drive Mobile App
Simply choose your desired battery.
- Slim Performance Battery (now comes with 2x batteries for the same price!)
- Slim Endurance Battery (Requires at 28v charger additional purchase!)
- Slim Travel Battery
If your looking to pair your Assist Slim with an integrated mast, checkout these listings
- Assist Slim x NoLimitz integrated Mast
- Assist Slim x Axis Integrated Mast
The Foil Drive Assist Slim is perfectly suited to those just looking for an extra boost to get on foil or to ride smaller boards and foils. The Assist Slim is not suitable for prolongated periods of motor assisted riding, it simply provides the boost to get up on foil and ride more. Advanced Surf and Downwind riders will love the low profile and weight but will need to be very disciplined on the throttle usage. Wing foilers simple do not need the run time usually and will also appreciate the low profile and weight.
NB: Boards with Carbon Tracks may experience connectivity issues. See our External Antenna
Optionen auswählen
*Choice of Slim Battery*
V2 Motor with 20cm Cable as Standard
UNIVERSAL MAST ADAPTOR NOW INCLUDED!

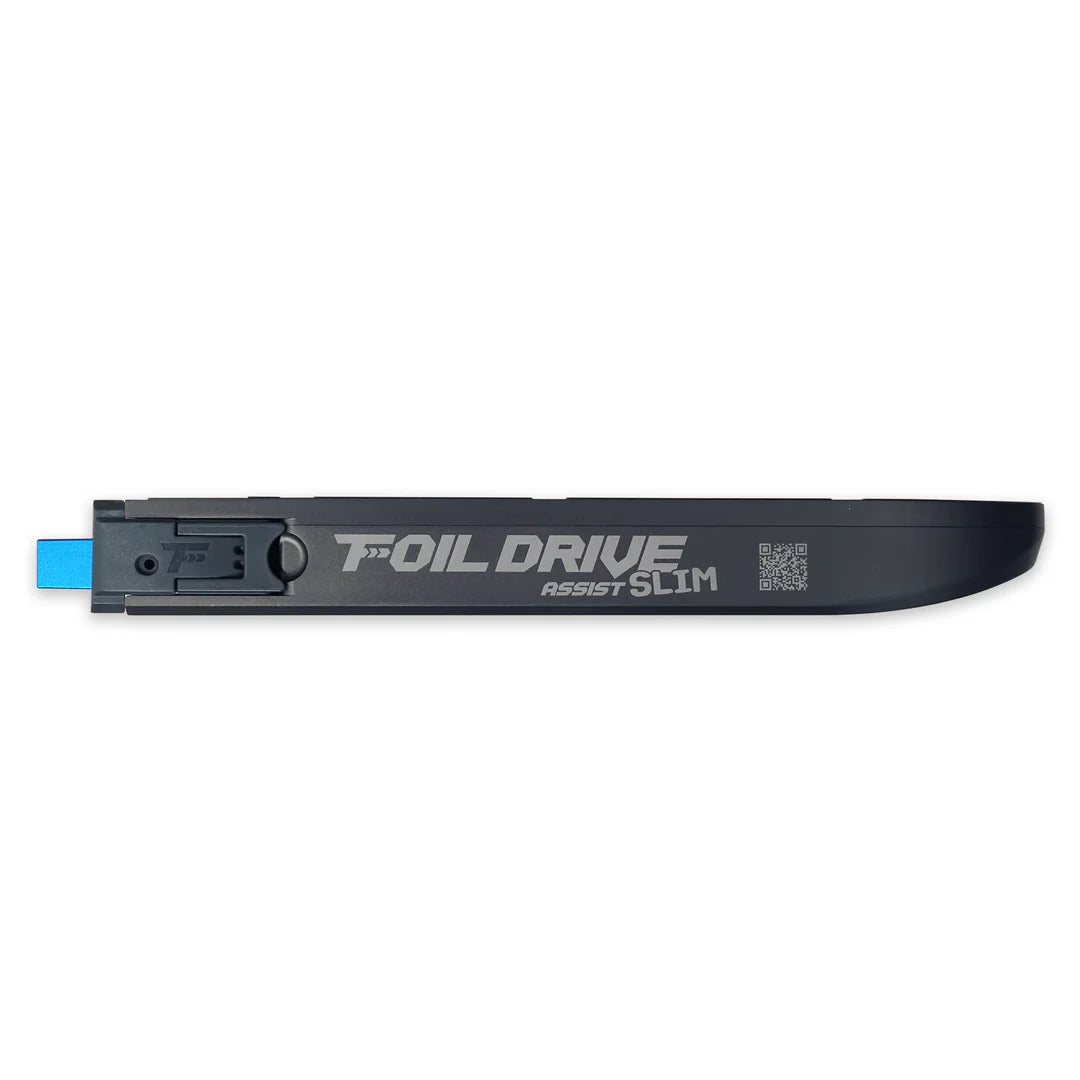

Foil Drive Assist Slim Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone C
Foil Drive Nose Cone D
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
Power Lead (AU, US or EU)
2x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist Slim Mast Plate Bolts 60mm
4x M6 Assist Slim Mast Plate Bolts 60mm
Foil Drive 2.5mm Driver
Pick Tool
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case
Foil Drive Mounting Bolt Bag:
4x M8 Locking Tee Nuts
4x M6 Locking Tee Nuts
4x M34 x 20m Bolts for Locking Tee Nuts
Foil Drive Motor and Pod Bolts Bag:
4x Motor Pod Bolts (M3 x 12mm)
3x Puck Bolts (M3 x 12mm)
3x Motor Plug Bolts (M4 x 10mm)
Spare Parts Bag:
2x O-Ring Seals - Foil Drive Assist Slim
2x Latch Assembly - Foil Drive Assist Slim
3x Motor Plug Bolts (M3 x 12mm)
4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
4x Latch Locking Bolts (M3 x 16mm)
2x Propeller Bolts (M3 x 30mm)
2x Latch Pivot Bolts (M3 x 45mm)
Assist Slim

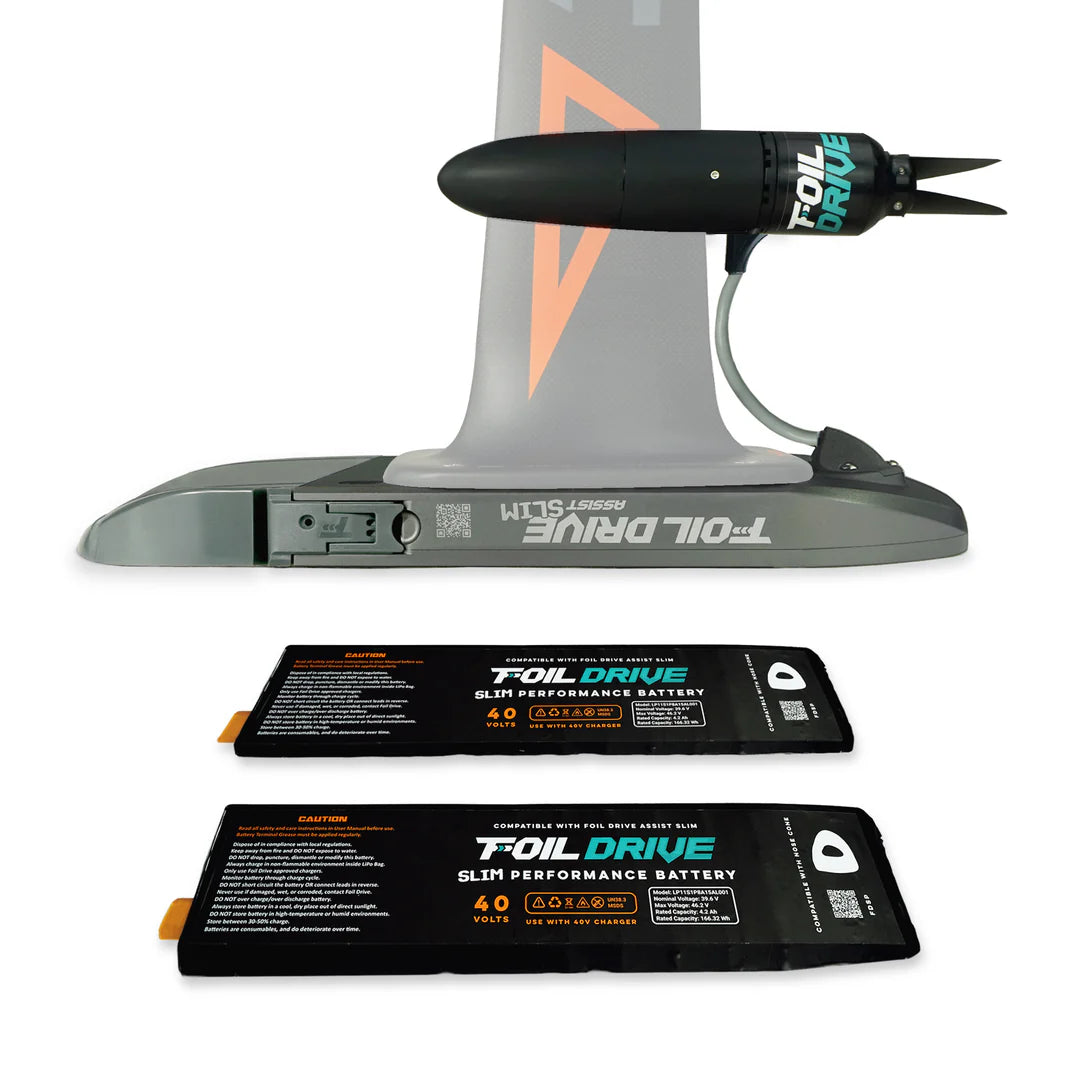

Slim Performance Battery x2
Slim Endurance Battery
Slim Travel Battery
Project Cedrus integrated Mast for Gen2
AXIS Integrated Mast for Gen2
Max Thrust: 25.5kg (56.2lbs)
Total Install Weight : 4.2-3.75 kg (9.2-8.2lbs)
Dimensions with Longer C Battery: L510 x W250 x H35mm
